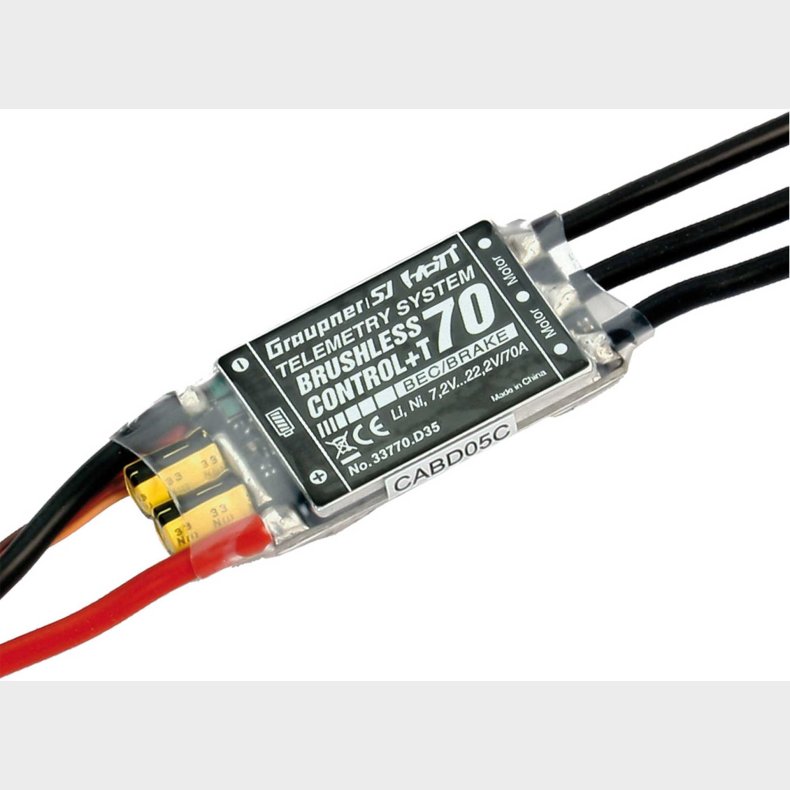

BRUSHLESS ESC + T 70 BEC XT-60 2-6S ESC WITH HOTT TELEMETRY

BRUSHLESS ESC + T 70 BEC XT-60 2-6S ESC WITH HOTT TELEMETRY

Produktet er udsolgt.

1.050,00 DKK

Vejl. udsalgspris 1.050,00 DKK

Model/Varenr.: 33770.D35
Lagerstatus: Ikke på lager

 "GRAUPNER BRUSHLESS ESC + T 70 BEC XT-60 2-6S ESC WITH HOTT TELEMETRY"

Programming options and telemetry:

  • Battery type NiCd/NiMH/LiIo/LiPo/LiFe
  • cut-off voltage
  • Type of control soft/hard
  • direction of rotation
  • Engine Timing
  • ramp-up time
  • starting torque
  • Brake on/off
  • Boot/auto reverse mode on/off
  • Speed control mode for heli on/off
  • Readjustment speed in speed control mode
  • Number of poles of the motor
  • gear reduction



telemetry warnings:

  • undervoltage limit
  • maximum current
  • minimum speed
  • max. temperature
  • max. capacity
  • Telemetry display:
  • current voltage
  • current and maximum current
  • current and maximum speed
  • Current and maximum temperature
  • capacity




More technical data:

  • Reverse: programmable
  • Soft start: programmable
  • EMF brake: programmable
  • Clock frequency: 32 kHz
  • Dimensions with capacitor: 70 x 31.5 x 10 mm
  • Battery connection: G3.5
  • BEC current short-term: 10 A
  • Dimensions without capacitor: 55 x 31.5 x 10 mm
  • Operating voltage: 5.5 ... 25 V





Internal HoTT telemetry functions:

Graupner HoTT telemetry for easy programming of the controllers. Graupner HoTT telemetry data and warnings for voltage, current, temperature, speed and capacity (current and capacity not at 33718, 33718.SC, 33718.SH).



  • Clocked, highly efficient and powerful BEC system
  •
  • Simple programming of the transmitter paths
  •
  • Graupner HoTT telemetry for easy programming of the controllers







Technical data

Cells: 6-18NiXX/2-6 Lipo
Cont A: 70
Max A: 80
Weight (g): 46,5/36/26,3
BEC: 5-8V/3A
Type: Brushless
Größe (mm): 55/30/10
BEC oder OPTO: BEC
