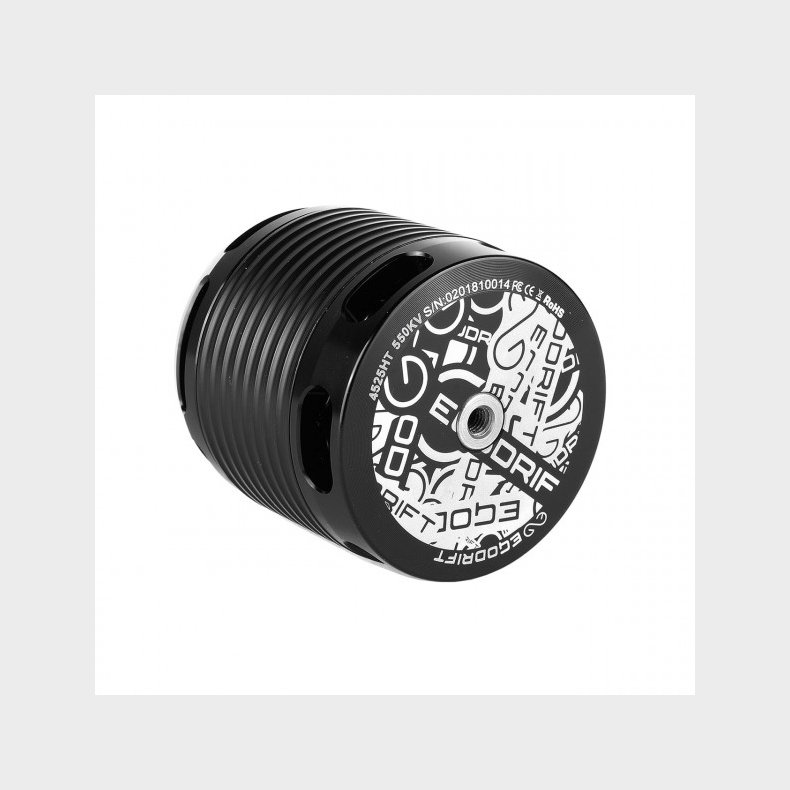

Tengu 4525HT 550kV Motor (55mm shaft)

Tengu 4525HT 550kV Motor (55mm shaft)

Produktet er udsolgt.

2.999,00 DKK

Vejl. udsalgspris 2.999,00 DKK

Model/Varenr.: ED11767
Lagerstatus: Ikke på lager

EGODRIFT Tengu high-performance brushless motors for RC heli are the result of intensive of testing and development.

The dipped stator is hand-wound with high-temperature wire. Optimized cooling and optimally balanced motors result in high continuous performance without compromise.

The 4525HT is designed for 12s - 14s and operation in the 700 - 800 helicopter class.

Use in 700 class:
Align T-Rex 700, Mikado Logo 700, Gaui 700

Features:

  • Hand-wound stator
  • High-temperature wire
  • Designed for maximum power
  • High Tourque
  • Best efficiency
  • Perfectly balanced
  • Optimized cooling

Technical Specifications:

KV Rating: 550KV
LiPo Cells: 12s -14s
Pole: 10
Max. Power (2 Sek): 11560W
Max. Current (2 Sek): 220A
Max. Cont. Current: 120A
Idle Current: 3.5A
Shaft Diameter: 6.0mm
Shaft Lenght: 55mm
Stator Diameter: 45mm
Stator Lenght: 25mm
Body Diameter: 56.4mm
Body Lenght: 55.58mm
Weight: 460g
Applications: 700 - 800 class


Delivery:

1x Motor
3x Plugs/Sockets
4x Mounting Screws
1x Bell Securing Screw
1x Manual
