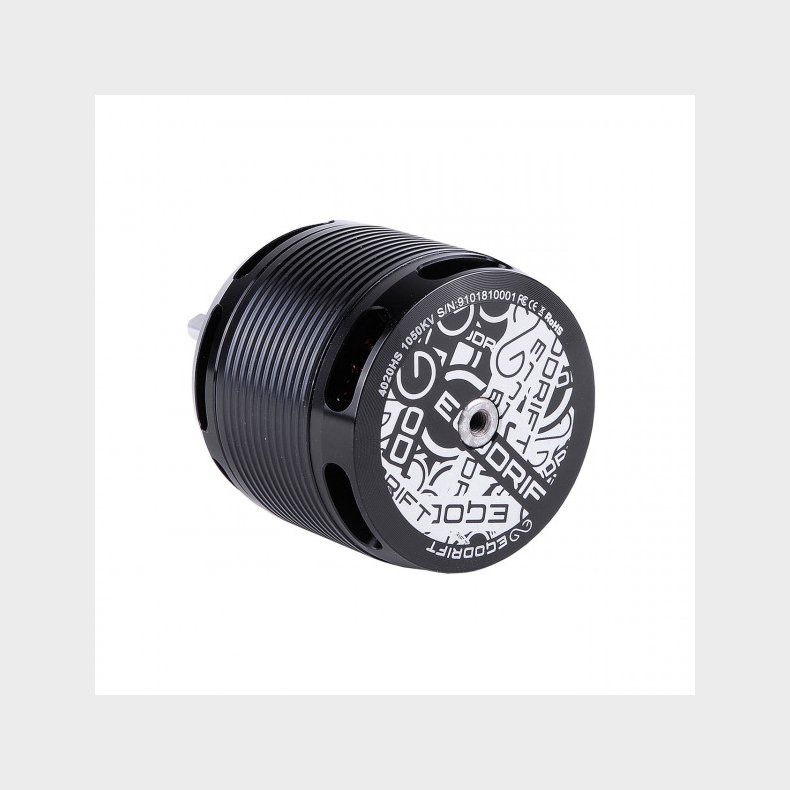

Tengu 4020HS 1050kV Motor 5x32mm

Tengu 4020HS 1050kV Motor 5x32mm

Produktet er udsolgt.

1.300,00 DKK

Vejl. udsalgspris 1.925,00 DKK

Model/Varenr.: ED11689
Lagerstatus: Ikke på lager

EGODRIFT Tengu high-performance brushless motors for RC heli are the result of intensive of testing and development.

The dipped stator is hand-wound with high-temperature wire. Optimized cooling and optimally balanced motors result in high continuous performance without compromise.

The 4020HS is designed for 6s operation in the 500 helicopter class.

Use in 500 class:
SAB Goblin, XLPower, Quest, Hirobo, Mikado logo, Align T-Rex, Gaui or Scale helicopter model.

Features:

  • Hand-wound stator
  • High-temperature wire
  • Designed for maximum power
  • Best efficiency
  • Perfectly balanced
  • Optimized cooling

Technical Specifications:

KV Rating: 1050KV
LiPo Cells: 6s
Pole: 10
Max. Power (2 Sek): 2040W
Max. Current (2 Sek): 110A
Max. Cont. Current: 85A
Idle Current: 5.2A
Shaft Diameter: 5.0mm
Shaft Lenght: 32mm
Stator Diameter: 40mm
Stator Lenght: 20mm
Body Diameter: 49.6mm
Body Lenght: 45.0mm
Weight: 290g
Applications: 500 class


Delivery:

1x Motor
3x Plugs/Sockets
4x Mounting Screws
1x Bell Securing Screw
1x Manual
