THETA HELI Brushless SET 3x THS921B / 1x THM982
  • THETA HELI Brushless SET 3x THS921B / 1x THM982
  • THETA HELI Brushless SET 3x THS921B / 1x THM982

THETA HELI Brushless SET 3x THS921B / 1x THM982

Produktet er udsolgt.

2.400,00 DKK

Vejl. udsalgspris 2.400,00 DKK

Model/Varenr.: TS-THS921B-982
Lagerstatus: Ikke på lager

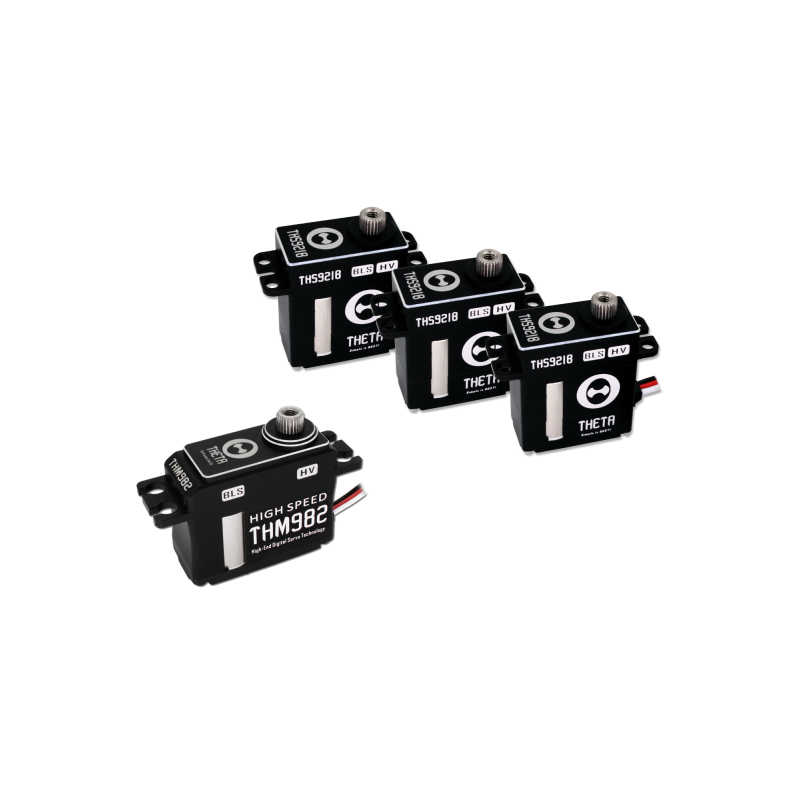

THETA Helicopter Set 3x THS921B Brushless (23mm) for swashplate and the THM982 (35mm) for tail

The field of application of the servo set is for helicopters from 450 to 500 size.

THETA THM921B 23mm Brushless swashplate servo:


Specifications:



 Motor   Brushless
 Operating Voltage  6V bis 8,4V



 Speed at 6V  0,100 (sec/60°)
 Speed at 7,4V  0,090 (sec/60°)
 Speed at 8,4V  0,080 (sec/60°)


 Torque at 6V  7,7 (kg/cm)
 Torque at 7,4V  8,9 (kg/cm)
 Torque at 8,4V  9,8 (kg/cm)

 Weight   21g
 Dimensions (mm)  23x12x27,4mm
 Neutral pulse (factory-made)  1520µs

 Working Frequency  50-400Hz
 Output toothing  25T Ø 4,9mm
 (Nexspor usw.)



THETA THM982 Brushless HV Servo



The application range of the servo is versatile from helicopter tail servo in 450-600 midi size, in function models, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.


Specifications:


 Motor   Brushless
 Operating Voltage  5V bis 8,4V

with max. 2.3 current consumption
 Speed bei 5V  0,080 (sec/60°)
 Speed bei 6V  0,070 (sec/60°)
 Speed bei 7,4V  0,060 (sec/60°)
 Speed bei 8,4V  0,050 (sec/60°)

 Torque bei 5V  6 (kg/cm)
 Torque bei 6V  7 (kg/cm)
 Torque bei 7,4V  8 (kg/cm)
 Torque bei 8,4V  9 (kg/cm)

 Weight  42g
 Dimensions (mm)  35x15x31mm
 Neutral pulse (factory-made)  760µs

 Working Frequency  50-400Hz
 Output toothing  25T Ø 5,9mm
 (Nexspor, Futaba
 Align, BK, Savöx
 usw.)

Accessories:
1x Servo THM921B
1x Servo THM982
