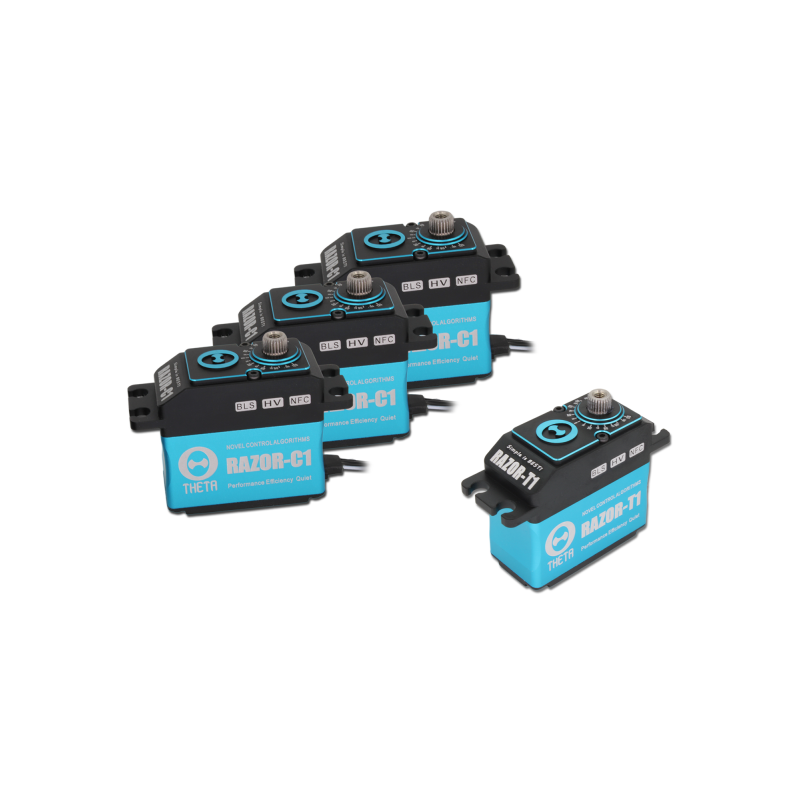

THETA RAZOR HELI SET 3x C1 / 1x T1 Brushless HV Servo with NFC

Produktet er udsolgt.

4.240,00 DKK

Vejl. udsalgspris 4.240,00 DKK

Model/Varenr.: TS-RC1-RT1

Lagerstatus: Ikke på lager

NFC programmable brushless HV servo in the 40 mm standard size.

The field of application of the servo set is for helicopters from 550 to 800+ size.

Specifications RAZOR-C1 swashplate servo:

NFC programmable via Android mobile phone app
Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 2,6A current consumption
Speed at 5V	0,108 (sec/60°)
Speed at 6V	0,084 (sec/60°)
Speed at 7,4V	0,071 (sec/60°)
Speed at 8,4V	0,060 (sec/60°)

Torque at 5V	23 (kg/cm)
Torque at 6V	27 (kg/cm)
Torque at 7,4V	34 (kg/cm)
Torque at 8,4V	36 (kg/cm)

with max. 5A current consumption
Speed at 5V	0,102 (sec/60°)
Speed at 6V	0,079 (sec/60°)
Speed at 7,4V	0,067 (sec/60°)
Speed at 8,4V	0,056 (sec/60°)

Torque at 5V	32 (kg/cm)
Torque at 6V	37 (kg/cm)
Torque at 7,4V	44 (kg/cm)
Torque at 8,4V	48 (kg/cm)

Weight	73g
Dimensions (mm)	40x20x38mm
Neutral pulse (factory-made)	1520µs
Neutral pulse (optional per App)	760µs
Maximale Working Frequency	50-400Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)

Specifications RAZOR-T1 Tailservo:

NFC programmable via Android mobile phone app
Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 2.6A current consumption
Speed at 5V	0,062 (sec/60°)
Speed at 6V	0,054 (sec/60°)
Speed at 7,4V	0,047 (sec/60°)
Speed at 8,4V	0,042 (sec/60°)

Torque at 5V	17 (kg/cm)
Torque at 6V	18 (kg/cm)
Torque at 7,4V	19 (kg/cm)
Torque at 8,4V	20 (kg/cm)

with max. 5A current consumption
Speed at 5V	0,058 (sec/60°)
Speed at 6V	0,051 (sec/60°)
Speed at 7,4V	0,044 (sec/60°)
Speed at 8,4V	0,039 (sec/60°)

Torque at 5V	20 (kg/cm)
Torque at 6V	24 (kg/cm)
Torque at 7,4V	27 (kg/cm)
Torque at 8,4V	30 (kg/cm)

Weight	73g
Dimensions (mm)	40x20x38mm
Neutral pulse (factory-made)	760µs
Neutral pulse (optional per App)	1520µs
Working Frequency	50-1000Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)

Accessories:
3x Servo RAZOR-C1
1x Servo RAZOR-T1
