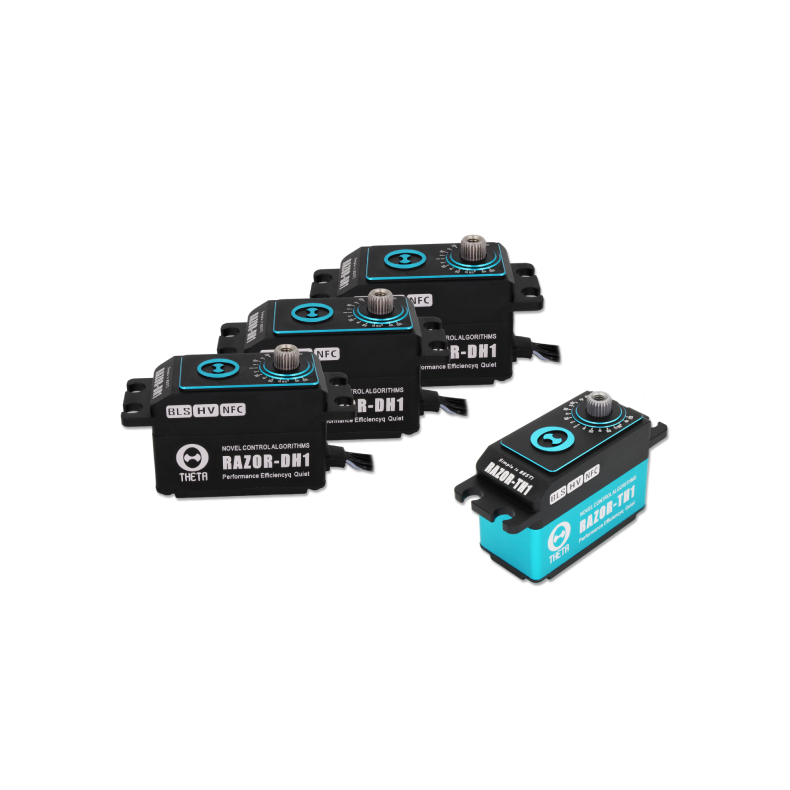

THETA RAZOR Low-Profile HELI SET 3x DH1 / 1x TH1 Brushless HV Servo with NFC

Produktet er udsolgt.

3.600,00 DKK

Vejl. udsalgspris 3.600,00 DKK

Model/Varenr.: TS-RDH1-RTH1

Lagerstatus: Ikke på lager

NFC programmable brushless HV servo in the 40 mm low-profile size.

The application range of the servo set is versatile from helicopter swashplate from the 550 up to the 800 size.

Specifications RAZOR DH1 Low-Profile swashplate servo:

NFC programmable via Android mobile phone app
Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 3A current consumption
Speed at 5V	0,108 (sec/60°)
Speed at 6V	0,090 (secS/60°)
Speed at 7,4V	0,080 (sec/60°)
Speed at 8,4V	0,070 (sec/60°)

Torque at 5V	24 (kg/cm)
Torque at 6V	26 (kg/cm)
Torque at 7,4V	28 (kg/cm)
Torque at 8,4V	30 (kg/cm)

with max. 5A current consumption
Speed at 5V	0,092 (sec/60°)
Speed at 6V	0,081 (sec/60°)
Speed at 7,4V	0,072 (sec/60°)
Speed at 8,4V	0,063 (sec/60°)

Torque at 5V	30 (kg/cm)
Torque at 6V	34 (kg/cm)
Torque at 7,4V	37 (kg/cm)
Torque at 8,4V	40 (kg/cm)

Weight	60g
Dimensions (mm)	41x20,5x29,5mm
Neutral pulse (factory-made)	1520µs
Neutral pulse (optional per App)	760µs
Working Frequency	50-400Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)

Specifications RAZOR TH1 Low-Profile tail servo:

NFC programmable via Android mobile phone app
Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 2.6A current consumption
Speed at 5V	0,087 (sec/60°)
Speed at 6V	0,072 (sec/60°)
Speed at 7,4V	0,064 (sec/60°)
Speed at 8,4V	0,056 (sec/60°)

Torque at 5V	19 (kg/cm)
Torque at 6V	21 (kg/cm)
Torque at 7,4V	23 (kg/cm)
Torque at 8,4V	24 (kg/cm)

with max. 5A current consumption
Speed at 5V	0,079 (sec/60°)
Speed at 6V	0,065 (sec/60°)
Speed at 7,4V	0,058 (sec/60°)
Speed at 8,4V	0,051 (sec/60°)

Torque at 5V	22 (kg/cm)
Torque at 6V	26 (kg/cm)
Torque at 7,4V	28 (kg/cm)
Torque at 8,4V	30 (kg/cm)

Weight	60g
Dimensions (mm)	41x20,5x29,5mm
Neutral pulse (factory-made)	760µs
Neutral pulse (optional per App)	1520µs
Working Frequency	50-1000Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)

Accessories:
3x Servo RAZOR-DH1

1x Servo RAZOR-TH1
