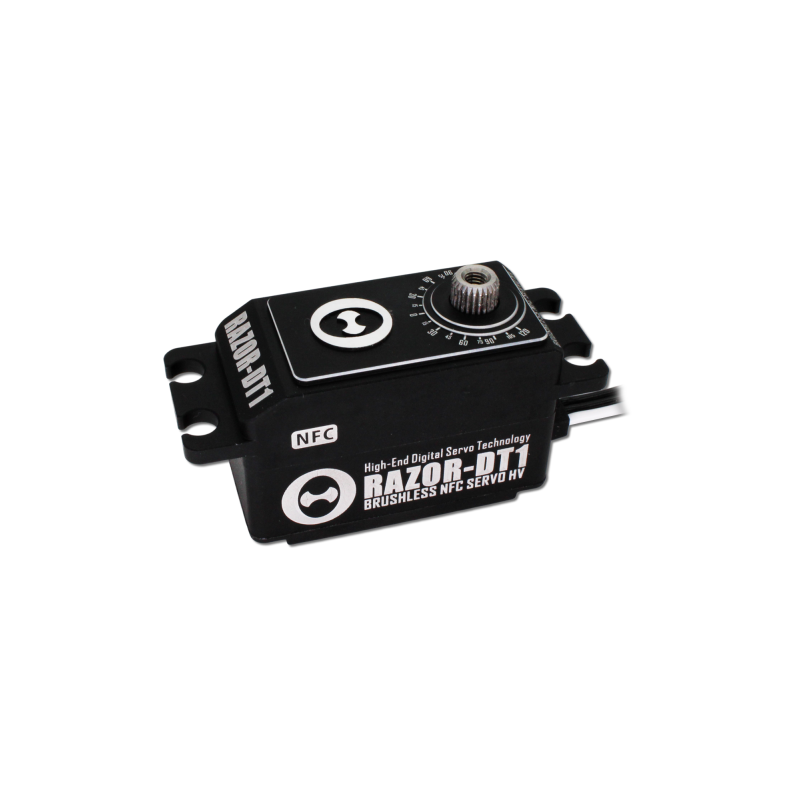

THETA RAZOR-DT1 Low-Profile Brushless HV Servo with NFC

THETA RAZOR-DT1 Low-Profile Brushless HV Servo with NFC

Produktet er udsolgt.

960,00 DKK

Vejl. udsalgspris 960,00 DKK

Model/Varenr.: TS-RDT1
Lagerstatus: Ikke på lager

THETA RAZOR-DT1 Low-Profile Brushless HV Servo with NFC



NFC programmable brushless HV servo in the 40 mm low-profile size.
The range of application of the servo is versatile from helicopter tail rotor servo from the 550 up to the 700 size, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.
Due to the SANWA SSR compatibility, the advantages of Sanwa Super Response transmission can be used in the RC car sector.


Specifications:

NFC programmable via Android mobile phone app
 Motor   Brushless
 Operating Voltage  5V bis 8,4V

with max. 3A current consumption
 Speed at 5V  0,087 (sec/60°)
 Speed at 6V  0,072 (sec/60°)
 Speed at 7,4V  0,064 (sec/60°)
 Speed at 8,4V  0,056 (sec/60°)

 Torque at 5V  10 (kg/cm)
 Torque at 6V  11 (kg/cm)
 Torque at 7,4V  12 (kg/cm)
 Torque at 8,4V  13 (kg/cm)

with max. 5A current consumption
 Speed at 5V  0,079 (sec/60°)
 Speed at 6V  0,065 (sec/60°)
 Speed at 7,4V  0,058 (sec/60°)
 Speed at 8,4V  0,051 (sec/60°)

 Torque at 5V  12 (kg/cm)
 Torque at 6V  13.5 (kg/cm)
 Torque at 7,4V  15 (kg/cm)
 Torque at 8,4V  16 (kg/cm)

 Weight   53g
 Dimensions (mm)  41x20,5x27mm
 Neutral pulse (factory-made)  760µs
 Neutral pulse (optional per App)  1520µs
 Working Frequency  50-1000Hz
 Output toothing  25T Ø 5,9mm
 (Nexspor, Futaba
 Align, BK, Savöx
 usw.)


Accessories:
1x Servo RAZOR-DT1
3x Servo horn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
1x Capacitor
