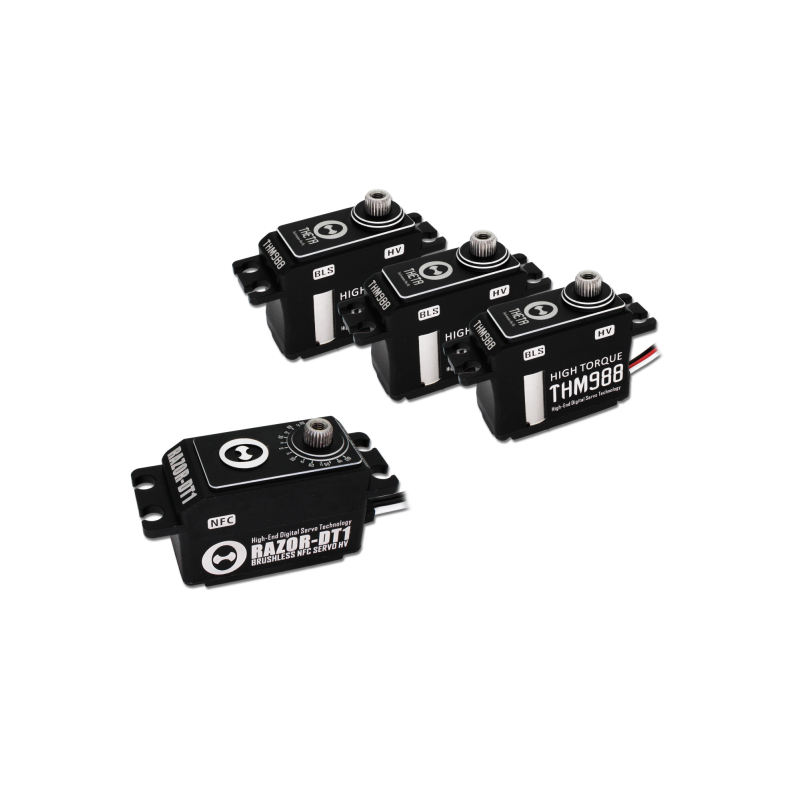

THETA HELI SET 3x THM988 / 1x RAZOR DT1 LP BLS HV Servo

Produktet er udsolgt.

2.800,00 DKK

Vejl. udsalgspris 2.800,00 DKK

Model/Varenr.: TS-THM988-RDT1

Lagerstatus: Ikke på lager

The application range of the servo is helicopter in the 500 to 600 size.

Specifications THETA THM988 35mm swashplate servo:


Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 2.3A current consumption
Speed at 5V	0,100 (sec/60°)
Speed at 6V	0,090 (sec/60°)
Speed at 7,4V	0,080 (sec/60°)
Speed at 8,4V	0,070 (sec/60°)

Torque at 5V	10 (kg/cm)
Torque at 6V	12 (kg/cm)
Torque at 7,4V	14 (kg/cm)
Torque at 8,4V	15 (kg/cm)

Weight	42g
Dimensions (mm)	35x15x31mm
Neutral pulse (factory-made)	1520µs

Working Frequency	50-400Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)

THETA RAZOR-DT1 40mm Low-Profile tail servo.

NFC programmable brushless HV servo in the 40 mm low-profile size.

Specifications:

NFC programmable via Android mobile phone app
Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 3A current consumption
Speed at 5V	0,087 (sec/60°)
Speed at 6V	0,072 (sec/60°)
Speed at 7,4V	0,064 (sec/60°)
Speed at 8,4V	0,056 (sec/60°)

Torque at 5V	10 (kg/cm)
Torque at 6V	11 (kg/cm)
Torque at 7,4V	12 (kg/cm)
Torque at 8,4V	13 (kg/cm)

with max. 5A current consumption
Speed at 5V	0,079 (sec/60°)
Speed at 6V	0,065 (sec/60°)
Speed at 7,4V	0,058 (sec/60°)
Speed at 8,4V	0,051 (sec/60°)

Torque at 5V	12 (kg/cm)
Torque at 6V	13.5 (kg/cm)
Torque at 7,4V	15 (kg/cm)
Torque at 8,4V	16 (kg/cm)

Weight	53g
Dimensions (mm)	41x20,5x27mm
Neutral pulse (factory-made)	760µs
Neutral pulse (optional per App)	1520µs
Working Frequency	50-1000Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)

Accessories:
3x Servo THM988 (35mm)
1x Servo Razor DT1 (40mm LP)
