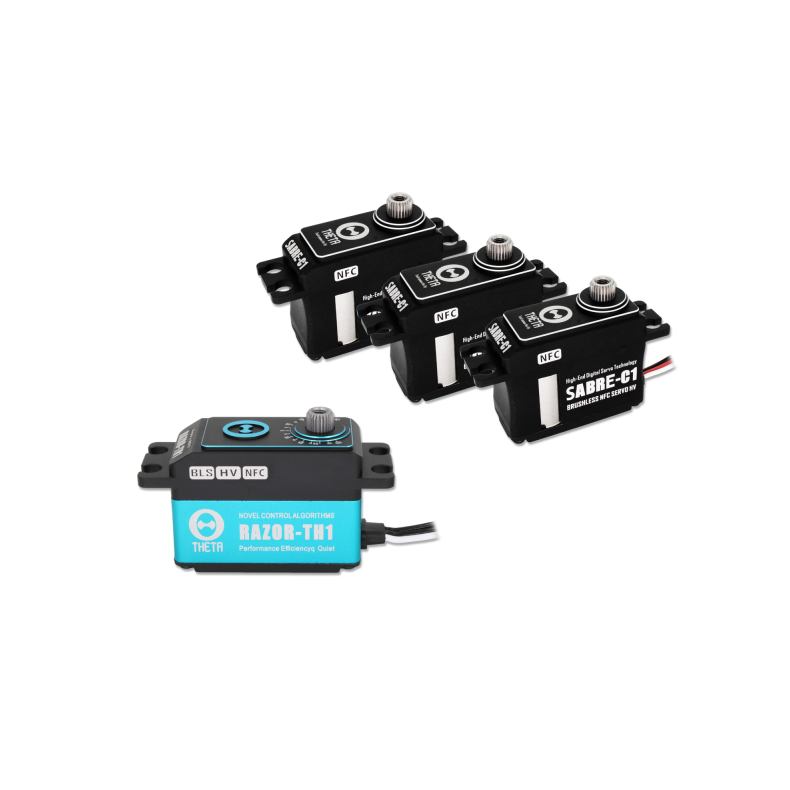

THETA HELI SET 3x SABRE-C1 / 1x RAZOR TH1 LP BLS HV Servo with NFC

Produktet er udsolgt.

3.600,00 DKK

Vejl. udsalgspris 3.600,00 DKK

Model/Varenr.: TS-SC1-TH1

Lagerstatus: Ikke på lager

The application range of the servo is helicopter in the 500 to 600 size.

THETA SABRE C1 35mm swashplate servo.

NFC programmable brushless HV Servo in the Mini 35 mm size.

Specifications:


Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 2.3A current consumption
Speed at 5V	0,100 (sec/60°)
Speed at 6V	0,090 (sec/60°)
Speed at 7,4V	0,080 (sec/60°)
Speed at 8,4V	0,070 (sec/60°)

Torque at 5V	10 (kg/cm)
Torque at 6V	12 (kg/cm)
Torque at 7,4V	14 (kg/cm)
Torque at 8,4V	15 (kg/cm)

Weight	46g
Dimensions (mm)	35 x 15 x 31mm
Neutral pulse (factory-made)	1520µs
Neutral pulse (optional per App)	760µs
Working Frequency	50-400Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)

THETA RAZOR-TH1 40mm Low-Profile tail servo.

NFC programmable brushless HV servo in the 40 mm low-profile size.

Specifications:

NFC programmable via Android mobile phone app
Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 2.6A current consumption
Speed at 5V	0,087 (sec/60°)
Speed at 6V	0,072 (sec/60°)
Speed at 7,4V	0,064 (sec/60°)
Speed at 8,4V	0,056 (sec/60°)

Torque at 5V	19 (kg/cm)
Torque at 6V	21 (kg/cm)
Torque at 7,4V	23 (kg/cm)
Torque at 8,4V	24 (kg/cm)

with max. 5A current consumption
Speed at 5V	0,079 (sec/60°)
Speed at 6V	0,065 (sec/60°)
Speed at 7,4V	0,058 (sec/60°)
Speed at 8,4V	0,051 (sec/60°)

Torque at 5V	22 (kg/cm)
Torque at 6V	26 (kg/cm)
Torque at 7,4V	28 (kg/cm)
Torque at 8,4V	30 (kg/cm)

Weight	60g
Dimensions (mm)	41x20,5x29,5mm
Neutral pulse (factory-made)	760µs
Neutral pulse (optional per App)	1520µs
Working Frequency	50-1000Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)

Accessories:
3x Servo Sabre-C1 (35mm)
1x Servo Razor TH1 (40mm LP)
