THETA THM982 Brushless HV Servo

THETA THM982 Brushless HV Servo

Produktet er udsolgt.

680,00 DKK

Vejl. udsalgspris 680,00 DKK

Model/Varenr.: TS-THM982
Lagerstatus: Ikke på lager

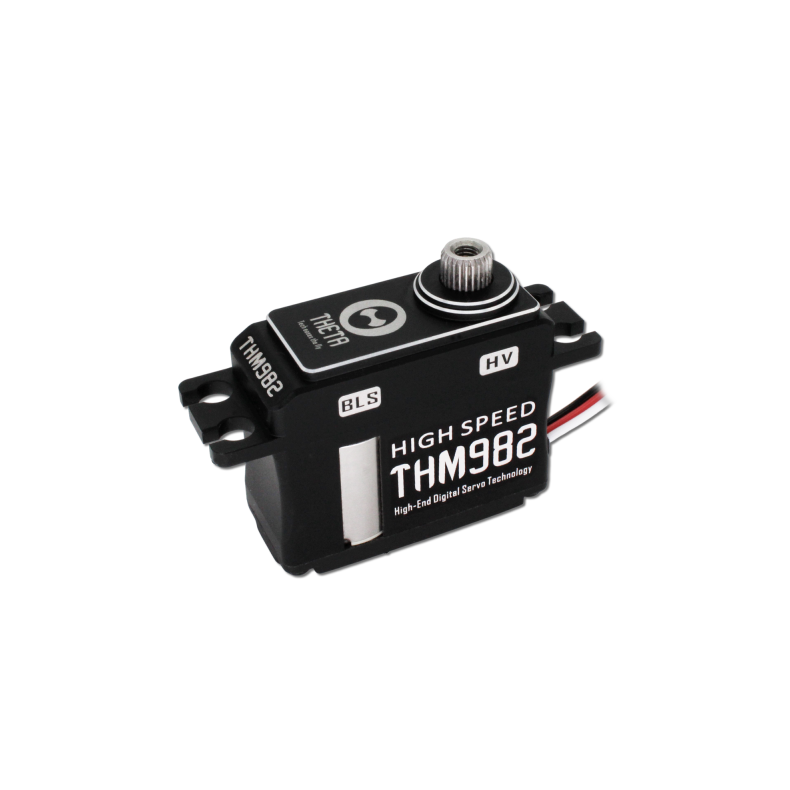

THETA THM982 Brushless HV Servo



Brushless HV servo in the 35 mm size.
The application range of the servo is versatile from helicopter tail servo in 450-600 midi size, in function models, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.


Specifications:


 Motor   Brushless
 Operating Voltage  5V bis 8,4V

with max. 2.3 current consumption
 Speed bei 5V  0,080 (sec/60°)
 Speed bei 6V  0,070 (sec/60°)
 Speed bei 7,4V  0,060 (sec/60°)
 Speed bei 8,4V  0,050 (sec/60°)

 Torque bei 5V  6 (kg/cm)
 Torque bei 6V  7 (kg/cm)
 Torque bei 7,4V  8 (kg/cm)
 Torque bei 8,4V  9 (kg/cm)

 Weight  42g
 Dimensions (mm)  35x15x31mm
 Neutral pulse (factory-made)  760µs

 Working Frequency  50-1000Hz
 Output toothing  25T Ø 5,9mm
 (Nexspor, Futaba
 Align, BK, Savöx
 usw.)


Accessories:
1x Servo THM982
4x Servohorn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
1x Capacitor
