THETA THM988 Brushless HV Servo

Produktet er udsolgt.

680,00 DKK

Vejl. udsalgspris 680,00 DKK

Live Hobby

Model/Varenr.: TS-THM988

Lagerstatus: Ikke på lager

Beskrivelse

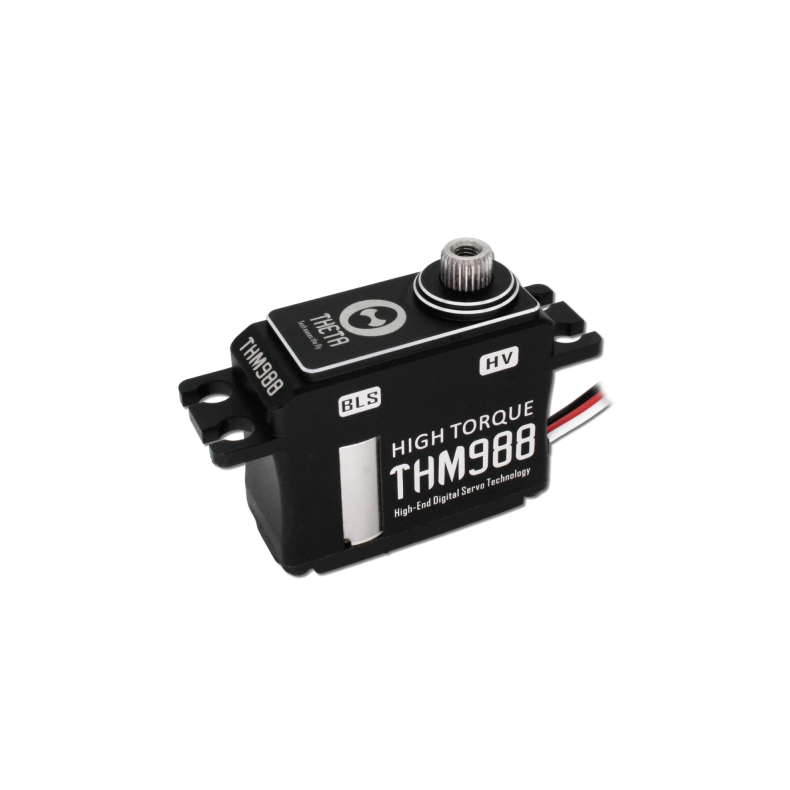

THETA THM988 Brushless HV Servo

Brushless HV servo in mini 35mm size.
The range of application of the servo is versatile from helicopter swashplate servo in the 500 to 600 size, in function models, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.

Specifications:


Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 2.3A current consumption
Speed at 5V	0,100 (sec/60°)
Speed at 6V	0,090 (sec/60°)
Speed at 7,4V	0,080 (sec/60°)
Speed at 8,4V	0,070 (sec/60°)

Torque at 5V	10 (kg/cm)
Torque at 6V	12 (kg/cm)
Torque at 7,4V	14 (kg/cm)
Torque at 8,4V	15 (kg/cm)

Weight	42g
Dimensions (mm)	35x15x31mm
Neutral pulse (factory-made)	1520µs

Working Frequency	50-400Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)

Accessories:
1x Servo THM988
4x Servo horn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
